Transcrypt and Numscrypt

Index

jQuery

Despite competition, jQuery is still ubiquitous. Transcrypt and jQuery wear well together.

Code in jquery_demo/jquery_demo.html: <html> <head> <script src="https://ajax.googleapis.com/ajax/libs/jquery/1.12.0/jquery.min.js"></script> <script type="module"> import * as jquery_demo from "./__target__/jquery_demo.js"; $ (document) .ready (jquery_demo.start) </script> </head> <body bgcolor="black"> <font face="arial" size = "8"> <div>The</div> <div>quick</div> <div>brown</div> <div>fox</div> <div>jumps</div> <div>over</div> <div>the</div> <div>lazy</div> <div>dog</div> </body> </html>

Code in jquery_demo/jquery_demo.py: __pragma__ ('alias', 'S', '$') def start (): def changeColors (): for div in S__divs: S (div) .css ({ 'color': 'rgb({},{},{})'.format (* [int (256 * Math.random ()) for i in range (3)]), }) S__divs = S ('div') changeColors () window.setInterval (changeColors, 500)

Back to index

React

The React library makes it possible to create fast reacting interactive GUI's, by modifying a virtual DOM first and then adapting the real DOM in a minimal way. This example shows how it can be used in combination with Transcrypt.

Run the 'react_demo' example

Code in react_demo/react_demo.html: <!DOCTYPE html> <html> <head> <meta charset="UTF-8" /> <title>Hello React!</title> <script src="https://unpkg.com/react@16/umd/react.development.js" crossorigin></script> <script src="https://unpkg.com/react-dom@16/umd/react-dom.development.js" crossorigin></script> <style> body {font-family:arial;font-size:30px;padding:50px;background-color:#eeeeee;} h1 {font-size:50px;color:#0000ff;} </style> </head> <body> <div id="container"></div> <script type="module">import * as react_demo from "./__target__/react_demo.js";</script> </body> </html>

Code in react_demo/react_demo.py: from org.reactjs import createElement, useState, useEffect, useRef from org.reactjs.dom import render as react_render # Helper functions def h(elm_type, props='', *args): return createElement(elm_type, props, *args) def render(react_element, destination_id, callback=lambda: None): container = document.getElementById(destination_id) react_render(react_element, container, callback) def useInterval(func, delay=None): # can be used as `useInterval(func, delay)` # or as `@useInterval(delay)` if delay is None: delay = func return lambda fn: useInterval(fn, delay) ref = useRef(func) ref.current = func @useEffect.withDeps(delay) def setup(): id = setInterval(lambda: ref.current(), delay) return lambda: clearInterval(id) return func # Create a component def Hello(props): count, setCount = useState(0) @useInterval(1000) def updateCounter(): setCount(count+1) return h( 'div', {'className': 'maindiv'}, h('h1', None, 'Hello ', props['name']), h('p', None, 'Lorem ipsum dolor sit ame.'), h('p', None, 'Counter: ', count), h( 'button', {'onClick': updateCounter}, 'Increment', ) ) # Render the component in a 'container' div element = React.createElement(Hello, {'name': 'React!'}) render(element, 'container')

Back to index

Pong: Multiple classes and encapsulating Fabric.js

This example illustrates the clean application structure that can achieved by using class based object orientation in combination with encapsulating a JavaScript library as a Python module. Encapsulating JavaScript libraries is never necessary and in many cases it's overkill, all libraries can be used as-is. Moreover in this example the use of the voluminous Fabric.js library, encapsulated or not, is in itself overkill as well. The same functionality could have been achieved easily directly on top of the HTML5 canvas. But it serves to illustrate the principle.

A case where such encapsulation on the contrary is very useful, is the implementation of the Fast Fourier Transform in Numscrypt. The API is modeled after Numpy, utilizing an ndarray of type complex. Under the hood an efficient JavaScript open source library is used. By marrying the two, this functionality smoothly fits into Numscrypt, complete with operator overloading and slicing. This case was less suitable as an example here, since it requires mathematical knowledge.

Run the 'pong' example

Code in pong/pong.html: <html> <body> <font face="arial" > <style> #A, #Z, #K, #M, #space, #enter { -webkit-user-select:none; -khtml-user-drag:none; -khtml-user-select:none; -moz-user-select:none; -moz-user-select:-moz-none; -ms-user-select:none; user-select:none } body { visibility: hidden; } </style> <div id='text_frame' style="position:absolute"> <font color="444444" size="3"> <h3>Hit the spacebar to start</h3><br> <font color="000000" size="3"> This example has sourcemap support for Google Chrome. Press F12, click the <i>sources</i> tab and then click <b>somewhere near the end</b> of <i>pong.js</i> to try.<br><br> You have to click near the end since 90% of the JS code is the large fabric.js library. Fabric.js is used here just as an example, this simple demo could have been programmed directly on top of the HTML5 canvas. </div> <div id="canvas_frame" style="position:absolute"> <canvas id="canvas"></canvas> </div> <div id="buttons_frame" style="position:absolute; font-size:30"> <div id='A' style="position:absolute; background-color: gray; left:0; top:0; width:100; height:90; text-align:center"><br>A</div> <div id='Z' style="position:absolute; background-color: gray; left:0; top:120; width:100; height:90; text-align:center"><br>Z</div> <div id='K' style="position:absolute; background-color: gray; left:400; top:0; width:100; height:90; text-align:center"><br>K</div> <div id='M' style="position:absolute; background-color: gray; left:400; top:120; width:100; height:90; text-align:center"><br>M</div> <div id='space' style="position:absolute; background-color: gray; left:0; top:240; width:270; height:90; text-align:center"><br>Space</div> <div id='enter' style="position:absolute; background-color: gray; left:350; top:240; width:150; height:90; text-align:center"><br>Enter</div> <div style="position:absolute; top:300"> </div> <div> <script type="module">import * as pong from "./__target__/pong.js"; window.pong = pong;</script> <style>body {visibility: visible;}</style> </body> </html>

Code in pong/pong.py: __pragma__ ('skip') document = window = Math = Date = 0 # Prevent complaints by optional static checker __pragma__ ('noskip') __pragma__ ('noalias', 'clear') from com.fabricjs import fabric orthoWidth = 1000 orthoHeight = 750 fieldHeight = 650 enter, esc, space = 13, 27, 32 window.onkeydown = lambda event: event.keyCode != space # Prevent scrolldown on spacebar press class Attribute: # Attribute in the gaming sense of the word, rather than of an object def __init__ (self, game): self.game = game # Attribute knows game it's part of self.game.attributes.append (self) # Game knows all its attributes self.install () # Put in place graphical representation of attribute self.reset () # Reset attribute to start position def reset (self): # Restore starting positions or score, then commit to fabric self.commit () # Nothing to restore for the Attribute base class def predict (self): pass def interact (self): pass def commit (self): pass class Sprite (Attribute): # Here, a sprite is an attribute that can move def __init__ (self, game, width, height): self.width = width self.height = height Attribute.__init__ (self, game) def install (self): # The sprite holds an image that fabric can display self.image = __new__ (fabric.Rect ({ 'width': self.game.scaleX (self.width), 'height': self.game.scaleY (self.height), 'originX': 'center', 'originY': 'center', 'fill': 'white' })) __pragma__ ('kwargs') def reset (self, vX = 0, vY = 0, x = 0, y = 0): self.vX = vX # Speed self.vY = vY self.x = x # Predicted position, can be commit, no bouncing initially self.y = y Attribute.reset (self) __pragma__ ('nokwargs') def predict (self): # Predict position, do not yet commit, bouncing may alter it self.x += self.vX * self.game.deltaT self.y += self.vY * self.game.deltaT def commit (self): # Update fabric image for asynch draw self.image.left = self.game.orthoX (self.x) self.image.top = self.game.orthoY (self.y) def draw (self): self.game.canvas.add (self.image) class Paddle (Sprite): margin = 30 # Distance of paddles from walls width = 10 height = 100 speed = 400 # / s def __init__ (self, game, index): self.index = index # Paddle knows its player index, 0 == left, 1 == right Sprite.__init__ (self, game, self.width, self.height) def reset (self): # Put paddle in rest position, dependent on player index Sprite.reset ( self, x = orthoWidth // 2 - self.margin if self.index else -orthoWidth // 2 + self.margin, y = 0 ) def predict (self): # Let paddle react on keys self.vY = 0 if self.index: # Right player if self.game.keyCode == ord ('K'): # Letter K pressed self.vY = self.speed elif self.game.keyCode == ord ('M'): self.vY = -self.speed else: # Left player if self.game.keyCode == ord ('A'): self.vY = self.speed elif self.game.keyCode == ord ('Z'): self.vY = -self.speed Sprite.predict (self) # Do not yet commit, paddle may bounce with walls def interact (self): # Paddles and ball assumed infinitely thin # Paddle touches wall self.y = Math.max (self.height // 2 - fieldHeight // 2, Math.min (self.y, fieldHeight // 2 - self.height // 2)) # Paddle hits ball if ( (self.y - self.height // 2) < self.game.ball.y < (self.y + self.height // 2) and ( (self.index == 0 and self.game.ball.x < self.x) # On or behind left paddle or (self.index == 1 and self.game.ball.x > self.x) # On or behind right paddle ) ): self.game.ball.x = self.x # Ball may have gone too far already self.game.ball.vX = -self.game.ball.vX # Bounce on paddle self.game.ball.speedUp (self) class Ball (Sprite): side = 8 speed = 300 # / s def __init__ (self, game): Sprite.__init__ (self, game, self.side, self.side) def reset (self): # Launch according to service direction with random angle offset from horizontal angle = ( self.game.serviceIndex * Math.PI # Service direction + (1 if Math.random () > 0.5 else -1) * Math.random () * Math.atan (fieldHeight / orthoWidth) ) Sprite.reset ( self, vX = self.speed * Math.cos (angle), vY = self.speed * Math.sin (angle) ) def predict (self): Sprite.predict (self) # Integrate velocity to position if self.x < -orthoWidth // 2: # If out on left side self.game.scored (1) # Right player scored elif self.x > orthoWidth // 2: self.game.scored (0) if self.y > fieldHeight // 2: # If it hits top wall self.y = fieldHeight // 2 # It may have gone too far already self.vY = -self.vY # Bounce elif self.y < -fieldHeight // 2: self.y = -fieldHeight // 2 self.vY = -self.vY def speedUp (self, bat): factor = 1 + 0.15 * (1 - Math.abs (self.y - bat.y) / (bat.height // 2)) ** 2 # Speed will increase more if paddle hit near centre if Math.abs (self.vX) < 3 * self.speed: self.vX *= factor self.vY *= factor class Scoreboard (Attribute): nameShift = 75 hintShift = 25 def install (self): # Graphical representation of scoreboard are four labels and a separator line self.playerLabels = [__new__ (fabric.Text ('Player {}'.format (name), { 'fill': 'white', 'fontFamily': 'arial', 'fontSize': '{}' .format (self.game.canvas.width / 30), 'left': self.game.orthoX (position * orthoWidth), 'top': self.game.orthoY (fieldHeight // 2 + self.nameShift) })) for name, position in (('AZ keys:', -7/16), ('KM keys:', 1/16))] self.hintLabel = __new__ (fabric.Text ('[spacebar] starts game, [enter] resets score', { 'fill': 'white', 'fontFamily': 'arial', 'fontSize': '{}'.format (self.game.canvas.width / 70), 'left': self.game.orthoX (-7/16 * orthoWidth), 'top': self.game.orthoY (fieldHeight // 2 + self.hintShift) })) self.image = __new__ (fabric.Line ([ self.game.orthoX (-orthoWidth // 2), self.game.orthoY (fieldHeight // 2), self.game.orthoX (orthoWidth // 2), self.game.orthoY (fieldHeight // 2) ], {'stroke': 'white'} )) def increment (self, playerIndex): self.scores [playerIndex] += 1 def reset (self): self.scores = [0, 0] Attribute.reset (self) # Only does a commit here def commit (self): # Committing labels is adapting their texts self.scoreLabels = [__new__ (fabric.Text ('{}'.format (score), { 'fill': 'white', 'fontFamily': 'arial', 'fontSize': '{}'.format (self.game.canvas.width / 30), 'left': self.game.orthoX (position * orthoWidth), 'top': self.game.orthoY (fieldHeight // 2 + self.nameShift) })) for score, position in zip (self.scores, (-2/16, 6/16))] def draw (self): for playerLabel, scoreLabel in zip (self.playerLabels, self.scoreLabels): self.game.canvas.add (playerLabel) self.game.canvas.add (scoreLabel) self.game.canvas.add (self.hintLabel) self.game.canvas.add (self.image) class Game: def __init__ (self): self.serviceIndex = 1 if Math.random () > 0.5 else 0 # Index of player that has initial service self.pause = True # Start game in paused state self.keyCode = None self.textFrame = document.getElementById ('text_frame') self.canvasFrame = document.getElementById ('canvas_frame') self.buttonsFrame = document.getElementById ('buttons_frame') self.canvas = __new__ (fabric.Canvas ('canvas', {'backgroundColor': 'black', 'originX': 'center', 'originY': 'center'})) self.canvas.onWindowDraw = self.draw # Install draw callback, will be called asynch self.canvas.lineWidth = 2 self.canvas.clear () self.attributes = [] # All attributes will insert themselves here self.paddles = [Paddle (self, index) for index in range (2)] # Pass game as parameter self self.ball = Ball (self) self.scoreboard = Scoreboard (self) window.setInterval (self.update, 10) # Install update callback, time in ms window.setInterval (self.draw, 20) # Install draw callback, time in ms window.addEventListener ('keydown', self.keydown) window.addEventListener ('keyup', self.keyup) self.buttons = [] for key in ('A', 'Z', 'K', 'M', 'space', 'enter'): button = document.getElementById (key) button.addEventListener ('mousedown', (lambda aKey: lambda: self.mouseOrTouch (aKey, True)) (key)) # Returns inner lambda button.addEventListener ('touchstart', (lambda aKey: lambda: self.mouseOrTouch (aKey, True)) (key)) button.addEventListener ('mouseup', (lambda aKey: lambda: self.mouseOrTouch (aKey, False)) (key)) button.addEventListener ('touchend', (lambda aKey: lambda: self.mouseOrTouch (aKey, False)) (key)) button.style.cursor = 'pointer' button.style.userSelect = 'none' self.buttons.append (button) self.time = + __new__ (Date) window.onresize = self.resize self.resize () def install (self): for attribute in self.attributes: attribute.install () def mouseOrTouch (self, key, down): if down: if key == 'space': self.keyCode = space elif key == 'enter': self.keyCode = enter else: self.keyCode = ord (key) else: self.keyCode = None def update (self): # Note that update and draw are not synchronized oldTime = self.time self.time = + __new__ (Date) self.deltaT = (self.time - oldTime) / 1000. if self.pause: # If in paused state if self.keyCode == space: # If spacebar hit self.pause = False # Start playing elif self.keyCode == enter: # Else if enter hit self.scoreboard.reset () # Reset score else: # Else, so if in active state for attribute in self.attributes: # Compute predicted values attribute.predict () for attribute in self.attributes: # Correct values for bouncing and scoring attribute.interact () for attribute in self.attributes: # Commit them to pyglet for display attribute.commit () def scored (self, playerIndex): # Player has scored self.scoreboard.increment (playerIndex) # Increment player's points self.serviceIndex = 1 - playerIndex # Grant service to the unlucky player for paddle in self.paddles: # Put paddles in rest position paddle.reset () self.ball.reset () # Put ball in rest position self.pause = True # Wait for next round def commit (self): for attribute in self.attributes: attribute.commit () def draw (self): self.canvas.clear () for attribute in self.attributes: attribute.draw () def resize (self): self.pageWidth = window.innerWidth self.pageHeight = window.innerHeight self.textTop = 0 if self.pageHeight > 1.2 * self.pageWidth: self.canvasWidth = self.pageWidth self.canvasTop = self.textTop + 300 else: self.canvasWidth = 0.6 * self.pageWidth self.canvasTop = self.textTop + 200 self.canvasLeft = 0.5 * (self.pageWidth - self.canvasWidth) self.canvasHeight = 0.6 * self.canvasWidth self.buttonsTop = self.canvasTop + self.canvasHeight + 50 self.buttonsWidth = 500 self.textFrame.style.top = self.textTop; self.textFrame.style.left = self.canvasLeft + 0.05 * self.canvasWidth self.textFrame.style.width = 0.9 * self.canvasWidth self.canvasFrame.style.top = self.canvasTop self.canvasFrame.style.left = self.canvasLeft self.canvas.setDimensions ({'width': self.canvasWidth, 'height': self.canvasHeight}) self.buttonsFrame.style.top = self.buttonsTop self.buttonsFrame.style.left = 0.5 * (self.pageWidth - self.buttonsWidth) self.buttonsFrame.style.width = self.canvasWidth self.install () self.commit () self.draw () def scaleX (self, x): return x * (self.canvas.width / orthoWidth) def scaleY (self, y): return y * (self.canvas.height / orthoHeight) def orthoX (self, x): return self.scaleX (x + orthoWidth // 2) def orthoY (self, y): return self.scaleY (orthoHeight - fieldHeight // 2 - y) def keydown (self, event): self.keyCode = event.keyCode def keyup (self, event): self.keyCode = None game = Game () # Create and run game

Back to index

D3.js

D3.js is a graphics library that offers data driven animation of the DOM. Using Python's 'classical' object orientation, D3.js programs are easy to comprehend and maintain.

Run the 'd3js_demo' example

Code in d3js_demo/d3js_demo.html: <html> <head> <style> body {background-image: url("water.jpg");} rect {fill: none; pointer-events: all;} .node {fill: #000000;} .cursor {fill: none; stroke: red; pointer-events: none;} .link {stroke: #003300;} </style> </head> <body style="font-family:arial; font-size:24; color:yellow"> <div style="position:absolute; top:50; left:100"> Click in frame to produce "frog spawn"...<br> Dots inside circle will be connected. </div> <script src="https://cdnjs.cloudflare.com/ajax/libs/d3/3.4.1/d3.min.js"></script> <script type="module">import * as d3js_demo from './__target__/d3js_demo.js';</script> </body> </html>

Code in d3js_demo/d3js_demo.py: class Spawn: def __init__ (self, width, height): self.width, self.height, self.spacing = self.fill = width, height, 100, d3.scale.category20 () self.svg = d3.select ('body' ) .append ('svg' ) .attr ('width', self.width ) .attr ('height', self.height ) .on ('mousemove', self.mousemove ) .on ('mousedown', self.mousedown) self.svg.append ('rect' ) .attr ('width', self.width ) .attr ('height', self.height) self.cursor = self.svg.append ('circle' ) .attr ('r', self.spacing ) .attr ('transform', 'translate ({}, {})' .format (self.width / 2, self.height / 2) ) .attr ('class', 'cursor') self.force = d3.layout.force ( ) .size ([self.width, self.height] ) .nodes ([{}] ) .linkDistance (self.spacing ) .charge (-1000 ) .on ('tick', self.tick) self.nodes, self.links, self.node, self.link = self.force.nodes (), self.force.links (), self.svg.selectAll ('.node'), self.svg.selectAll ('.link') self.restart () def mousemove (self): self.cursor.attr ('transform', 'translate (' + d3.mouse (self.svg.node ()) + ')') def mousedown (self): def pushLink (target): x, y = target.x - node.x, target.y - node.y if Math.sqrt (x * x + y * y) < self.spacing: spawn.links.push ({'source': node, 'target': target}) point = d3.mouse (self.svg.node ()) node = {'x': point [0], 'y': point [1]} self.nodes.push (node) self.nodes.forEach (pushLink) self.restart () def tick (self): self.link.attr ('x1', lambda d: d.source.x ) .attr ('y1', lambda d: d.source.y ) .attr ('x2', lambda d: d.target.x ) .attr ('y2', lambda d: d.target.y) self.node.attr ('cx', lambda d: d.x ) .attr ('cy', lambda d: d.y) def restart (self): self.link = self.link.data (self.links) self.link.enter ( ) .insert ('line', '.node' ) .attr('class', 'link') self.node = self.node.data (self.nodes) self.node.enter ( ) .insert ('circle', '.cursor' ) .attr ('class', 'node' ) .attr ('r', 7 ) .call (self.force.drag) self.force.start () spawn = Spawn (window.innerWidth, window.innerHeight)

Back to index

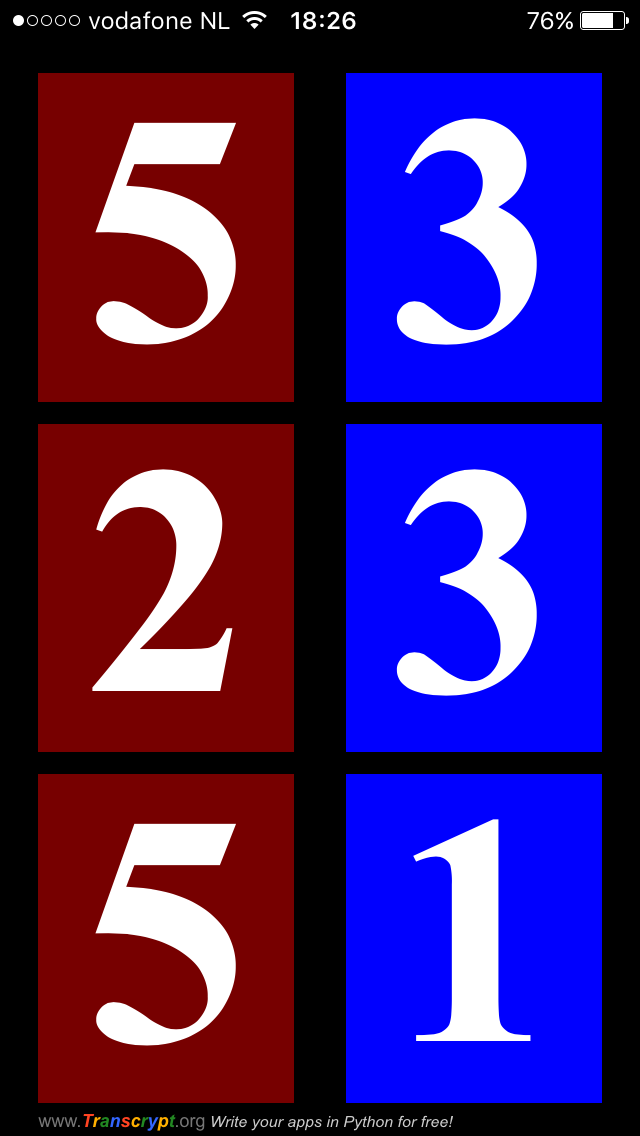

'Dice' iOS Web App

Web Apps for iOS are full screen iOS browser applications that have a hidden address bar, while zooming and scrolling are blocked. By including a so called "cache manifest", they are cached on your iOS device, they don't need an internet connection to function. Also they can access the user's location. Starting them up happens by clicking a customized icon on your home screen. In other words: They behave like an app, but without the hassle. Rather than requiring admission to the app store, they can be downloaded from any site. With Transcrypt you just program them in Python. As an extra, they also feel at home in any browser, not just running under iOS.

Run the 'ios_app' example

Code in ios_app/ios_app.html: <html manifest="cache.manifest">  <head> <meta name="apple-mobile-web-app-capable" content="yes"> <meta name="apple-mobile-web-app-status-bar-style" content="black"> <meta name="apple-mobile-web-app-title" content="Dice"> <meta name="viewport" content="width=device-width, initial-scale=1, user-scalable=no"> <link rel="apple-touch-icon" href="ios_app.png"> </head> <body> <script type="module"> import * as ios_app from "./__target__/ios_app.js"; window.ios_app = ios_app; </script> </body> </html>

Code in ios_app/ios_app.py: import random class Dice: def __init__ (self): document.body.addEventListener ('touchstart', lambda event: event.preventDefault ()) document.body.addEventListener ('mousedown', lambda event: event.preventDefault ()) document.body.style.margin = 0 document.body.style.overflow = 'hidden'; self.all = document.createElement ('div') self.all.style.color = 'white' self.all.style.backgroundColor = 'black' self.all.style.height = '100%' self.all.style.width = '100%' self.all.style.padding = 0 self.all.style.margin = 0 document.body.appendChild (self.all) self.dices = [] for index in range (6): dice = document.createElement ('div') dice.normalColor = '#770000' if index < 3 else '#0000ff' dice.style.position = 'absolute' dice.style.backgroundColor = dice.normalColor dice.addEventListener ('touchstart', (lambda aDice: lambda: self.roll (aDice)) (dice)) # Returns inner lambda dice.addEventListener ('mousedown', (lambda aDice: lambda: self.roll (aDice)) (dice)) self.dices.append (dice) self.all.appendChild (dice) dice.inner = document.createElement ('div') dice.inner.setAttribute ('unselectable', 'on') dice.inner.style.fontWeight = 'bold' dice.inner.style.textAlign = 'center' dice.inner.style.position = 'absolute' dice.inner.innerHTML = '?' dice.appendChild (dice.inner) self.banner = document.createElement ('div') self.banner.style.position = 'absolute' self.banner.style.cursor = 'pointer' self.banner.addEventListener ('touchstart', self.gotoTranscryptSite) self.banner.addEventListener ('mousedown', self.gotoTranscryptSite) self.banner.style.fontFamily = 'arial' self.banner.innerHTML = ( '<span id="bannerLarge"><font color="777777">www.<b><i>' + '<font color="ff4422">T<font color="ffb000">r<font color="228822">a<font color="3366ff">n' + '<font color="ff4422">s<font color="ffb000">c<font color="228822">r<font color="3366ff">y<font color="ffb000">p<font color="228822">t' + '</i></b><font color="777777">.org<font size={}><font color="cccccc"></span>' + '<span id="bannerSmall"><i> Write your apps in Python for free!</i></span>' ) self.all.appendChild (self.banner) self.bannerLarge = document.getElementById ('bannerLarge') self.bannerSmall = document.getElementById ('bannerSmall') self.audio = __new__ (Audio ('ios_app.mp3')) window.onresize = self.rightSize self.rightSize () def gotoTranscryptSite (self): document.location.href = 'http://www.transcrypt.org' def roll (self, dice): frameIndex = 10 self.audio.play () def frame (): nonlocal frameIndex frameIndex -= 1 dice.inner.innerHTML = random.randint (1, 6) if frameIndex: dice.style.color = random.choice (('red', 'green', 'blue', 'yellow')) setTimeout (frame, 100) else: dice.style.backgroundColor = dice.normalColor dice.style.color = 'white' frame () def rightSize (self): self.pageWidth = window.innerWidth self.pageHeight = window.innerHeight portrait = self.pageHeight > self.pageWidth for index, dice in enumerate (self.dices): if self.pageHeight > self.pageWidth: # Portrait dice.style.height = 0.3 * self.pageHeight dice.style.width = 0.4 * self.pageWidth dice.style.top = (0.03 + (index if index < 3 else index - 3) * 0.32) * self.pageHeight dice.style.left = (0.06 if index < 3 else 0.54) * self.pageWidth charBoxSide = 0.3 * self.pageHeight dice.inner.style.top = 0.15 * self.pageHeight - 0.6 * charBoxSide dice.inner.style.left = 0.2 * self.pageWidth - 0.5 * charBoxSide self.banner.style.top = 0.975 * self.pageHeight self.banner.style.left = 0.06 * self.pageWidth self.bannerLarge.style.fontSize = 0.017 * self.pageHeight self.bannerSmall.style.fontSize = 0.014 * self.pageHeight else: # Landscape dice.style.height = 0.4 * self.pageHeight dice.style.width = 0.3 * self.pageWidth dice.style.top = (0.06 if index < 3 else 0.54) * self.pageHeight dice.style.left = (0.03 + (index if index < 3 else index - 3) * 0.32) * self.pageWidth charBoxSide = 0.4 * self.pageHeight dice.inner.style.top = 0.2 * self.pageHeight - 0.6 * charBoxSide dice.inner.style.left = 0.15 * self.pageWidth - 0.5 * charBoxSide self.banner.style.top = 0.95 * self.pageHeight self.banner.style.left = 0.03 * self.pageWidth self.bannerLarge.style.fontSize = 0.015 * self.pageWidth self.bannerSmall.style.fontSize = 0.012 * self.pageWidth dice.inner.style.height = charBoxSide dice.inner.style.width = charBoxSide dice.inner.style.fontSize = charBoxSide dice = Dice ()

Code in ios_app/cache.manifest: CACHE MANIFEST # v45 CACHE: ios_app.html ios_app.mp3 __javascript__/ios_app.js

Back to index

Riot

The Riot library also uses a virtual DOM, just like React. It works with custom tags that define structure, style and behaviour of reusable components.

Run the 'riot_demo' example

Code in riot_demo/riot_demo.html: <!DOCTYPE html> <html> <head> <meta charset="UTF-8" /> <title>Hello PyRiot ;-)</title>  <script src="https://cdn.jsdelivr.net/riot/2.5/riot.js"></script> <style> body {font-family:arial;font-size:30px;padding:50px;} h1 {font-size:50px;color:#0000ff;} </style> </head> <body>  <sample id="s1"></sample> <script src="tags/sample.js"></script> <script>riot.mount('sample')</script>  <sample2 id='s2' label="nr1"></sample2> <mp2 id='s3' label="nr2"></mp2>  <script type="module"> import * as riot_demo from "./__target__/riot_demo.js" // register var cls = riot_demo.Sample2 riot.tag2('sample2', cls.template, cls.style, '', function(opts) { new cls(this, opts)}) document.t1 = riot.mount('sample2')[0].update() document.t2 = riot.mount('#s3', 'sample2')[0] document.t2.update() </script> </body> </html>

Code in riot_demo/color.py: # Producing a linear chain of style defs from a nested declaration of # color funcs msgs = [] styles = [] debug = 0 def _recurse(col, g, *s): msgs, styles, hsl = g lu = (('color', 0), ('background-color', 1)) hsl = hsl[col] hsl = [hsl[:3], [hsl[0], hsl[1], hsl[3]]] css = ';'.join( [str(i) + ': hsl({}, {}%, {}%)'.format(*hsl[j]) for i, j in lu]) for i in s: if debug: styles.append(col) else: styles.append(css) # empty string which we are replacing with value below, if not color # function follows msgs.append('%c') try: # can be another color function.. (triggering the recursion) i(g) except: # ... or normal output - in the current color msgs.pop() # TODO: msgs[-1] = ... instead pop() + append msgs.append('%c{}'.format(i)) # offering public, maybe of use. turned in _recurse into [fg, bg] # like red=[[0, 100, 90],[0, 100, 50]] hsl = {'red' : [ 0, 100, 90, 50], 'orange' : [ 39, 100, 85, 50], 'yellow' : [ 60, 100, 35, 50], 'green' : [120, 100, 60, 25], 'blue' : [240, 100, 90, 50], 'purple' : [300, 100, 85, 25], 'black' : [ 0, 0, 80, 0], 'gray' : [237, 8, 80, 50], } # generating the actual color functions, for each color: # right now we only now the color, later msgs and styles buffers: def _col(col): return lambda *parts: lambda g: _recurse(col, g, *parts) # TODO globals() not yet, so will import this in the clients: colors = {} # TODO .keys() currently necessary, should be easy to fix: for col in hsl.keys(): colors[col] = _col(col) def cprint(*s): msgs, styles = [], [] for i in s: i((msgs, styles, hsl)) if debug: for i in range(len(msgs)): print (msgs[i], '-> ', styles[i]) else: msg = ''.join(msgs) # FIXME this *crazy* eval is required since console.apply # is patched in Transcrypt st = '", "'.join(styles) st = ''.join(("console.log(\"", msg, '", "' + st + '")')) __pragma__('js', '{}', 'eval(st)') # TODO if __name__ == '__main__' not works, could be cool for quicktests on the # server # B, R, G = colors['blue'], colors['red'], colors['green'] # cprint(B('b1', 'b2', 'b3', R('r1', G('g2'), G('ga', 'gb'), 'r2'), 'b2'))

Code in riot_demo/riot_tag.py: # Parent Class for a Transcrypt Riot Tag # # This binds the namespace of a riot tag at before-mount event 100% to that of # the a transcrypt instance, except members which begin with an underscore, those # are private to the transcrypt object. # # The 4 riot lifecycle events are bound to overwritable python functions. # # Immutables (strings, ints, ...) are bound to property functions within the tag, # so the templates work, based on state in the transcrypt tag. # State can be changed in the riot tag as well but take care to not create new # references - you won't find them in the Transcrypt tag. # # # Best Practices: # - mutate state only in the transcrypt tag. # - declare all variables so they are bound into the riot tag # - IF you declare new variables to be used in templates, run # self.bind_vars(self.riot_tag) # TODO: docstring format not accepted by the transpiler, strange. __author__ = "Gunther Klessinger, gk@axiros.com, Germany" # just a minihack to get some colors, mainly to test lamdas and imports: from color import colors, cprint as col_print c = colors M, I, L, R, B = c['purple'], c['orange'], c['gray'], c['red'], c['black'] lifecycle_ev = ['before-mount', 'mount', 'update', 'unmount'] cur_tag_col = 0 class RiotTag: """ taking care for extending the riot tag obj with functions and immutable(!) properties of derivations of us See counter. """ debug = None # placeholders: template = '<h1>it worx</h1>' style = '' node_name = 'unmounted' opts = None def __init__(self, tag, opts): # opts into the python instance, why not: self.opts = opts self._setup_tag(tag) # giving ourselves a unique color: global cur_tag_col # working (!) cur_tag_col = (cur_tag_col + 1) % len(colors) # TODO values() on a dict self.my_col = colors.items()[cur_tag_col][1] def _setup_tag(self, tag): # keeping mutual refs tag.py_obj = self self.riot_tag = tag # making the event system call self's methods: handlers = {} for ev in lifecycle_ev: f = getattr(self, ev.replace('-', '_')) if f: # this.on('mount', function() {...}): # whats nicer? tag.on(ev, f) def pp(self, *msg): # color flash in the console. one color per tag instance. col_print( #B(self.riot_tag._riot_id), L('<', self.my_col(self.node_name, self.my_col), '/> '), M(' '.join([s for s in msg]))) def _lifecycle_ev(self, mode): if self.debug: self.pp(mode + 'ing') # overwrite these for your specific one: def update (self): self._lifecycle_ev('update') def mount (self): self._lifecycle_ev('mount') def unmount(self): self._lifecycle_ev('unmount') def before_mount(self): self._lifecycle_ev('before-mount') return self.bind_vars() def bind_vars(self): tag = self.riot_tag self.node_name = tag.root.nodeName.lower() self.debug and self.pp('binding vars') # binding self's functions into the tag instance # binding writable properties to everything else (e.g. ints, strs...) tag._immutables = im = [] lc = lifecycle_ev for k in dir(self): # private or lifecycle function? don't bind: if k[0] == '_' or k in lifecycle_ev or k == 'before_mount': continue v = getattr(self, k) # these I can't write in python. Lets use JS then. # TODO there should be, maybe some mocking facility for code # testing w/o a js runtime: __pragma__('js', '{}', ''' typeof v === "function" || typeof v === "object" ? tag[k] = self[k] : tag._immutables.push(k)''') __pragma__('js', '{}', ''' var i = tag._immutables, py = self i.forEach(function(k, j, i) { Object.defineProperty(tag, k, { get: function() { return self[k]}, set: function(v) { self[k] = v } }) })''')

Code in riot_demo/riot_demo.py: # an example user tag, using RiotTag from riot_tag import RiotTag class P(RiotTag): debug = 1 # never do mutables on class level. this is just to check if transpiler # creates the same behaviour - and it does, a second tag instance gets # the same lv object: lv = [{'name': 'n0'}] # immuatble on class level. does a second instance start at 1? # answer: yes, perfect: counter = 1 template = ''' <div><h1>Riot Transcrypt Tag Instance {label}</h1> <div>INNER</div></div> ''' def count_up(self): self.counter = self.counter + 1 self.pp('counter:', self.counter, 'len lv:', len(self.lv), 'adding one lv' ) self.lv.append({'name': 'n' + self.counter}) return self.counter # try some inheritance... class Sample2(P): # ... and change the state at every update, just for fun: template = P.template.replace('INNER', ''' <div> <h5 each="{lv}">name: {name} - counter: {count_up()}</h5> </div> ''') # no scoped styles currently style = '''sample2 h5 {color: green}''' def __init__(self, tag, opts): self.label = opts.label.capitalize() # this rocks so much. # alternative to super: RiotTag.__init__(self, tag, opts) # uncomment next line and chrome will stop: # debugger self.pp('tag init', 'adding 2 lv') # mutating the lv object: self.lv.extend([{'name': 'n1'}, {'name': 'n2'}]) def update(self): self.pp('update handler in the custom tag, calling super') RiotTag.update(self)

Back to index

Plotly: live scientific plotting in the browser

The free version of the plotly.js library offers a rich set of scientific plots. As with any JavaScript library, Transcrypt is able to use plotly.js directly in the browser. There's no need to go through a special Python interface layer as would be the case when running plotly from a desktop Python installation. This means that the full native functionality of plotly.js is at your disposal, using plain Python syntax. For convenience, __pragma__ ('jskeys') can be used to void the need for quotes in dictionary keys.

It should be stressed that your complete computational application runs in the browser. While this restricts the scale of computations to what a browser running JavaScript can handle, it offers the possibility to change computation parameters live and see the result immediately. Rather than putting the outcomes of your computations on the internet, you can make available the live computations themselves.

To achieve presentation quality results, plotly.js uses WebGL for its 3D graphs, something not all browsers currently support. The compiled Transcrypt code to use plotly.js is tiny and fast, but the plotly.js library itself has a large download and performs a lot of time consuming arithmetic. So loading the example page below may take quite some time.

Run the 'plotly_demo' example

Code in plotly_demo/plotly_demo.html: <html> <head> <style> div { display: inline-block; overflow: hidden; padding: 10; width: 500; height: 500; border: 1px solid gray; } </style> <script src="https://cdn.plot.ly/plotly-latest.js" charset="UTF-8"></script> </head> <body> <div id="linear"></div> <div id="logarithmic"></div> <div id="polar"></div> <div id="wireframe"></div> <div id="ribbon"></div> <div id="surface"></div> <div id="bar"></div> <div id="pie"></div> <div id="scatter3d"></div> <script type="module"> import * as hello from "./__target__/plotly_demo.js"; </script> </body> </html>

Code in plotly_demo/plotly_demo.py: __pragma__ ('jskeys') # For convenience, allow JS style unquoted string literals as dictionary keys import random import math import itertools xValues = [2 * math.pi * step / 200 for step in range (201)] yValuesList = [ [math.sin (xValue) + 0.5 * math.sin (xValue * 3 + 0.25 * math.sin (xValue * 5)) for xValue in xValues], [1 if xValue <= math.pi else -1 for xValue in xValues] ] kind = 'linear' Plotly.plot ( kind, [ { x: xValues, y: yValues } for yValues in yValuesList ], { title: kind, xaxis: {title: 'U (t) [V]'}, yaxis: {title: 't [s]'} } ) try: xValues = list (range (10)) yValues = [math.exp (x**2) for x in xValues] kind = 'logarithmic' Plotly.plot ( kind, [ { x: xValues, y: yValues } ], { title: kind, xaxis: {title: 'x'}, yaxis: {type: 'log', tickformat: '2e', title: 'exp (x**2)'} } ) except: # Microsoft Edge bug in exp function pass tangentialValues = list (range (-180, 180)) radialValuesList = [ [abs (t) for t in tangentialValues], [180 - abs (t) for t in tangentialValues], [abs (2 * t) for t in tangentialValues] ] kind = 'polar' Plotly.plot ( kind, [ { t: tangentialValues, r: radialValues, name: 'Cardioid {}'.format (i), } for i, radialValues in enumerate (radialValuesList) ], { title: kind } ) denseGrid = [8 * math.pi * step / 200 for step in range (-100, 101)] sparseGrid = [8 * math.pi * step / 200 for step in range (-100, 101, 10)] def getZValues (xGrid, yGrid): return [ [math.sin (r) / r for r in [math.sqrt (x * x + y * y) for x in xGrid]] # One row for y in yGrid # For all rows ] kind = 'wireframe' document.getElementById (kind) .innerHTML = 'Plotly {} not yet functional for JS6'.format (kind) aType = 'scatter3d' Plotly.plot ( kind, itertools.chain ( [ { x: denseGrid, y: [sparseGrid [i] for value in denseGrid], z: getZValues (denseGrid, sparseGrid) [i], type: aType, mode: 'lines', line: {color:'rgb(0,0,255)'}, zmin: -0.2, zmax: 1, showscale: not i, } for i in range (20) ], [ { x: [sparseGrid [i] for value in denseGrid], y: denseGrid, z: zip (*getZValues (sparseGrid, denseGrid)) [i], # Poor man's transpose to avoid dependency of demo on Numscrypt type: aType, mode: 'lines', line: {color:'rgb(0,0,255)'}, zmin: -0.2, zmax: 1, showscale: not i, } for i in range (20) ] ), { title: kind, showlegend: False } ) kind = 'ribbon' Plotly.plot ( kind, [ { x: denseGrid, y: list (range (i * 20, (i + 0.7) * 20)), z: getZValues (denseGrid, denseGrid) [i * 20 : (i + 0.7) * 20], # Take the right 'band' out of the data type: 'surface', zmin: -0.2, zmax: 1, showscale: not i, } for i in range (10) ], { title: kind } ) kind = 'surface' Plotly.plot ( kind, [ { x: denseGrid, y: denseGrid, z: getZValues (denseGrid, denseGrid), type: kind, zmin: -0.2, zmax: 1 } ], { title: kind } ) labels = ['much', 'more', 'most'] kind = 'bar' Plotly.plot ( kind, [ { name: 'rare', x: labels, y: [1, 2, 4], type: kind }, { name: 'common', x: labels, y: [8, 16, 32], type: kind } ], { title: kind, barmode: 'group' } ) kind = 'pie' Plotly.plot ( kind, [ { values: [1, 2, 3, 4, 5, 6], labels: ['least', 'less', 'little', 'much', 'more', 'most'], type: kind } ], { title: kind } ) kind = 'scatter3d' def getRandoms (aMax): return [random.randint (0, aMax) for i in range (20)] Plotly.plot ( kind, [ { x: getRandoms (aMax), y: getRandoms (aMax), z: getRandoms (aMax), mode: 'markers', marker: { color: 'rgb({}, 127, {})'.format (127 - aMax * 12, aMax * 12), size: 12, symbol: 'circle', line: { color: 'rgb({}, 255, {})'.format (255 - aMax * 25, aMax * 25), width: 1 } }, type: kind } for aMax in (2, 5, 10) ], { title: kind } )
